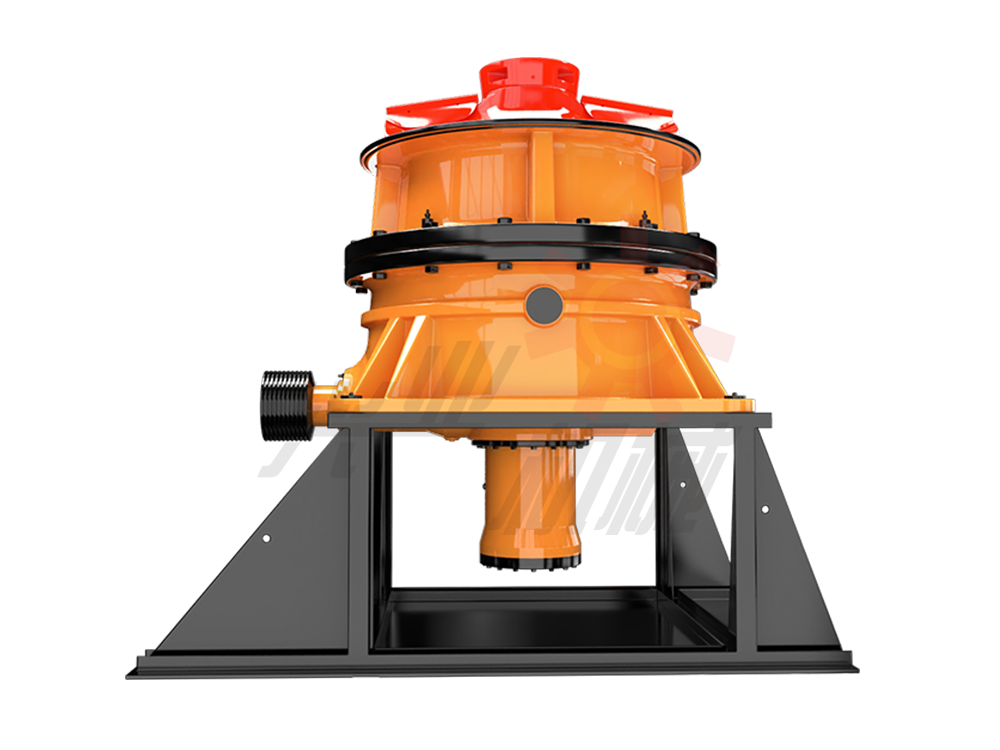

Product Description

Our company’s Single Cylinder Hydraulic Cone Crusher has high technology content in crushing machinery, with the characteristics of large processing capacity, high degree of automation and energy saving. It has gradually replaced the traditional  compound pendulum jaw crusher and spring cone crusher. The Cone Crusher of XINGYE DY/DYS series is a single hydraulic  cylinder with a hydraulic protection device at the bottom. The discharge port is adjusted by the floating up and down of main  shaft to adjust the position of crushing cone, so as to adjust the size of discharge port. The Cone Crusher of XINGYE DY/DYS  series is a single cylinder wave pressure cone crusher. It is mainly used for crushing various ores and rocks with compressive  strength less than 300mpa and medium and above hardness, and widely used in metallurgical industry, building material industry, road construction industry and chemical industry.

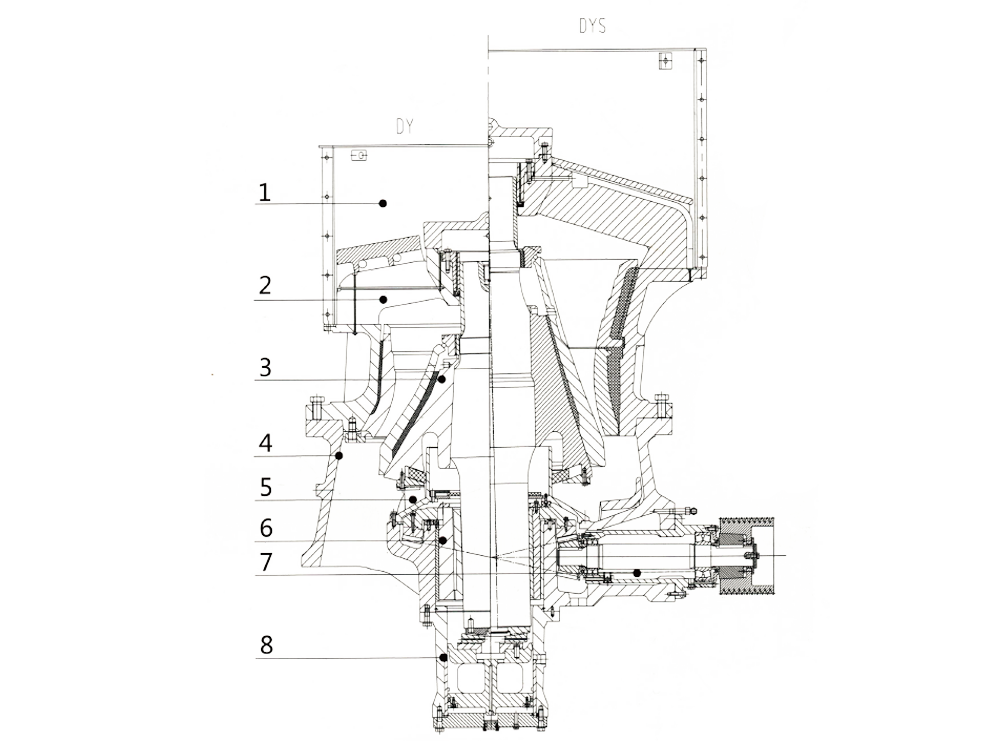

Main parts of this machine

1、Feeding device 2、Upper frame part  3、Crushing cone part  4、Lower frame part  5、Sealing part  6、Eccentric sleeve part  7、Transmission part  8、Hydraulic cylinder part

Characteristics

1、Using the principle of laminated crushing, and the grain shape is good.

2、In application of dustproof structure and hydraulic protection device.

3、Using spiral bevel gear to prolong the service life of gear.

4、Various choices of eccentric distances and diversity of cavity types.

5、Adopting PLC control.

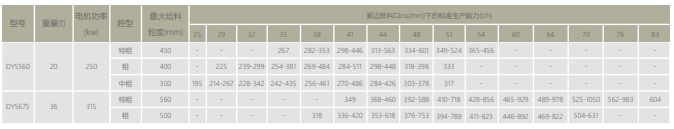

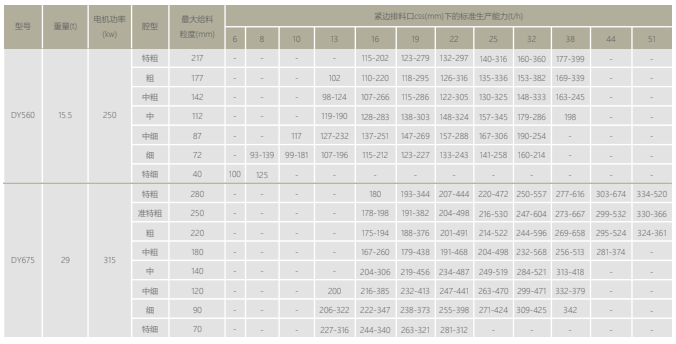

Technical Data Sheet

Note:

1、Carrying capacity varies under different processing conditions.

2、Carrying capacity is based on continuous feed with bulk density of 1.6T/m3.

3、Carrying capacity changes with characters of rocks.

4、The moisture content of material should not be more than 4%, and the compressive strength shall be below 300Mpa.

5、Production capacity may change as for different rocks, and the parameters are for reference only.

6、No notification for any further change in technical data of XINGYE.
